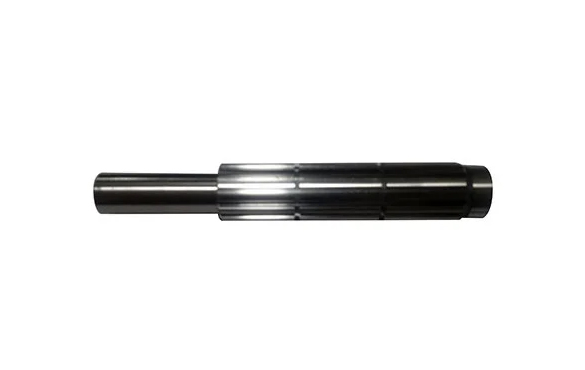

Spline Mandrel

With a firm commitment to quality, our organization is engaged in offering a wide ambit of Spline Mandrel. Being a trustworthy name in the industry, we are able to offer a superior quality array of Spline Mandrel to our patrons. Spline tapered mandrels are used for the inspection of the concentricity of an internal spline relative to another component feature such as a diameter. The mandrel has tapered teeth for side fit splines or tapered major diameter for major diameter fit splines.

Specifications:

• Profile type: Involute, Serration, Straight
• Range: Dia. 8 mm to 215 mm
• Length: 150 mm, 200 mm, 250 mm, 300 mm
• Material: SAE 01/02
• Hardness: 58-60 Hrc

Use:

For machining an inspection operation like turning, milling gear cutting etc. For production of spline component
